Our standard and Topseal barquetas assembler high speed and performance.
This model offers great versatility and speed in the assembly of boats, thanks to its operation through two independent servo motors, automatically synchronized, capable of working at speeds of up to 12,000 barquettes per hour in standard formats and up to 6,000 in TopSeal boats.
Multi-format
Capable of assembling most formats on the market.
high speed
A production of up to 2400 cycles/hour.
"0" Maintenance
All systems are optimized to minimize maintenance to the maximum.
Variable speed drive
Complete control of the plate assembly process.
Programmable shutdown
Tail tank with programmable shutdown system, reducing energy consumption.
Operativeness
Lighting on the mold, improving visibility when making adjustments to the machine.
Ergonomic
We take care of the details and your workers.
Remote control
Better and convenient management and analysis of productive data.
Easy Mobility
It includes wheels, rings and everything you need for easy handling between production centers.
Robustness
Manufactured on 4mm folded sheet metal chassis increasing its useful life.
Consumables under ISO standards
We only work with standard wear elements, easy to locate in the market.

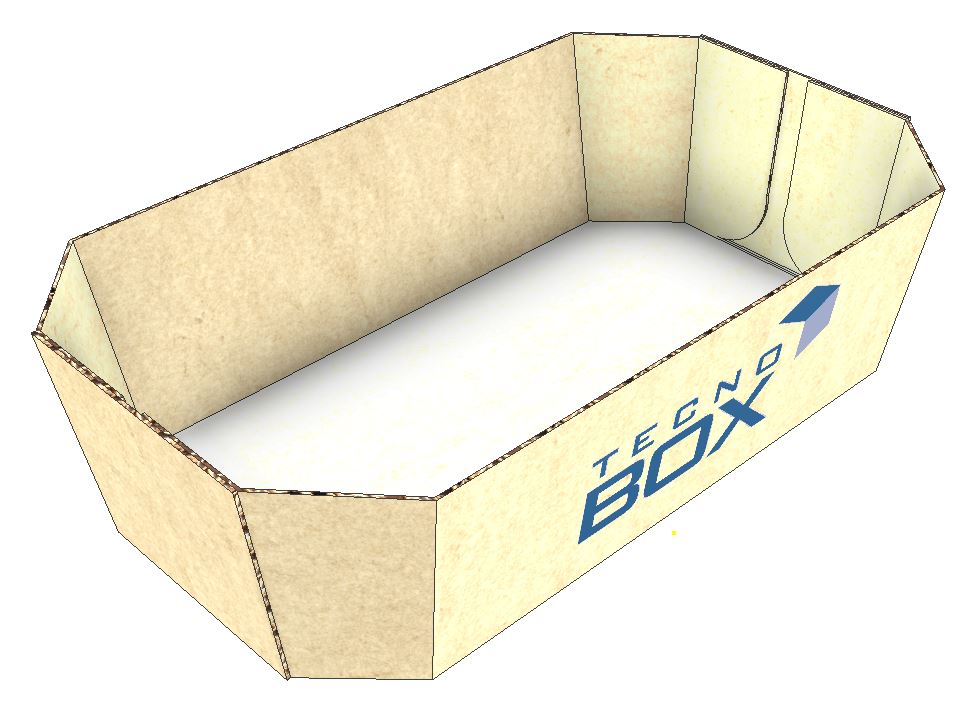

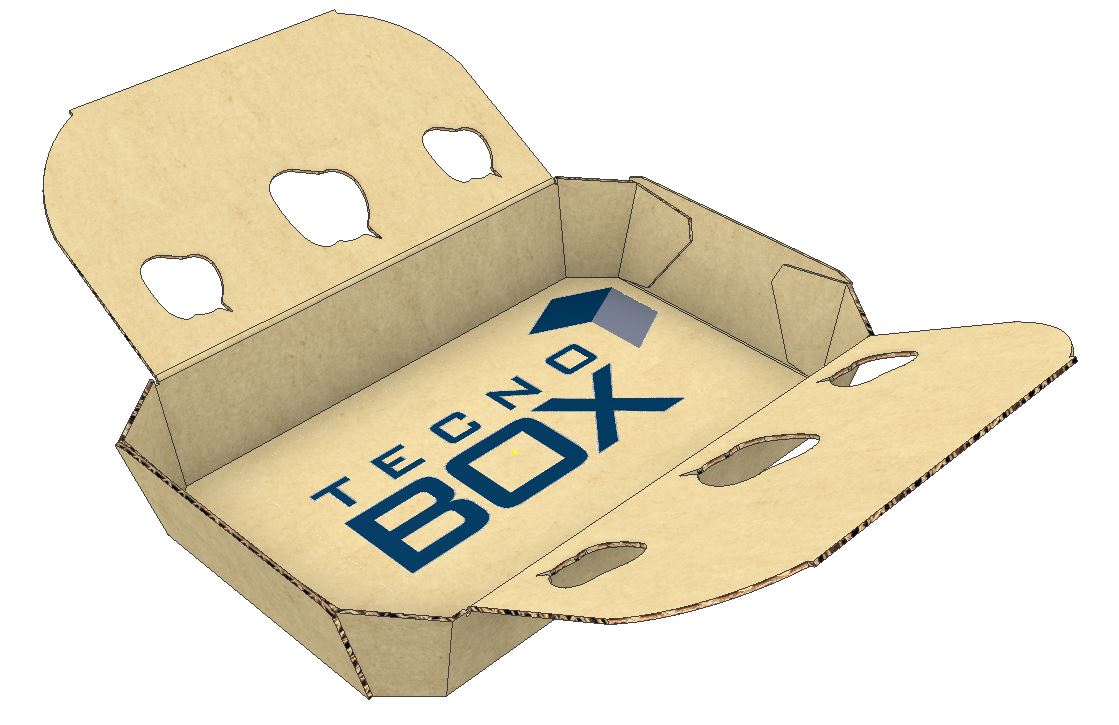

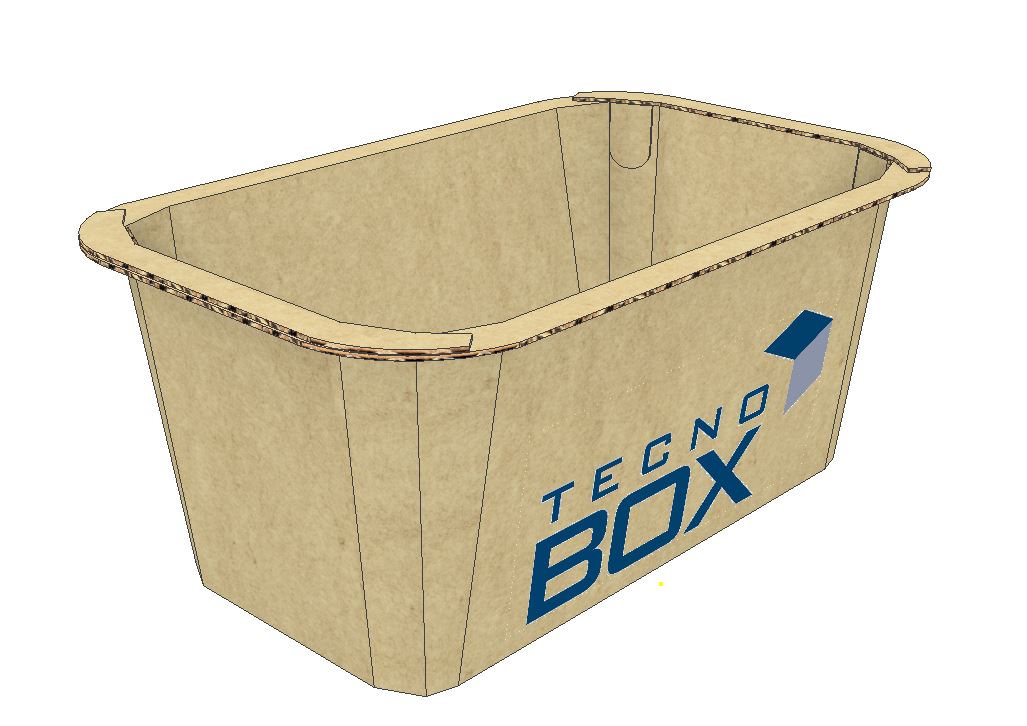

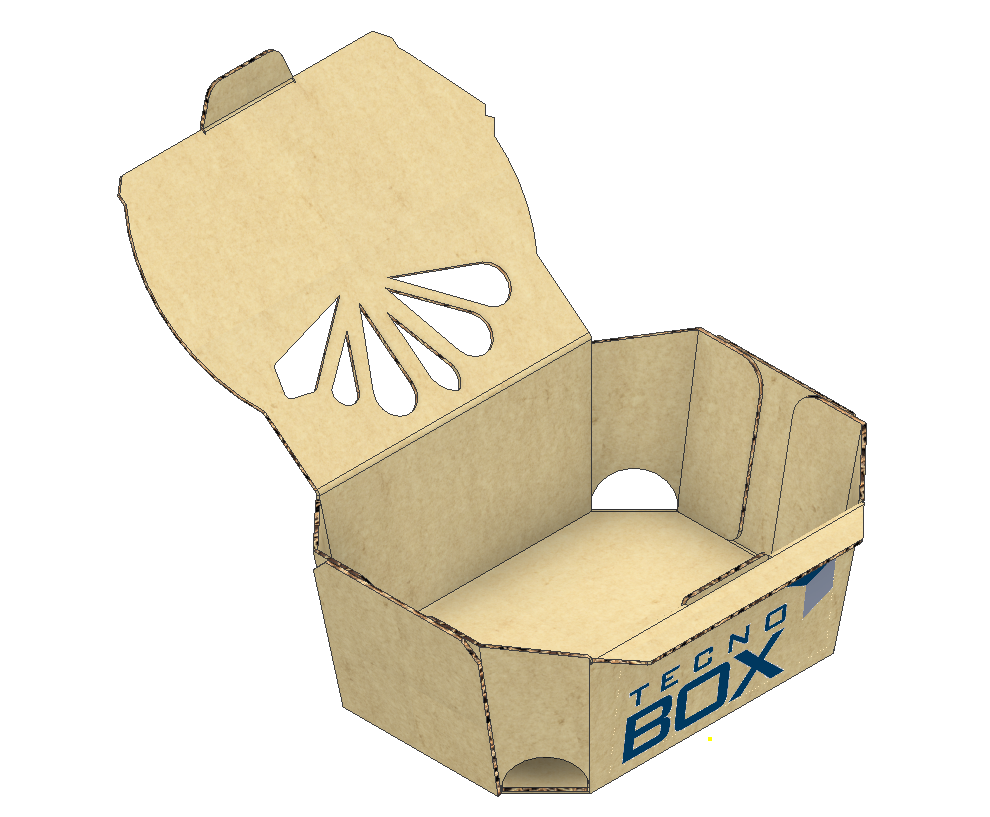

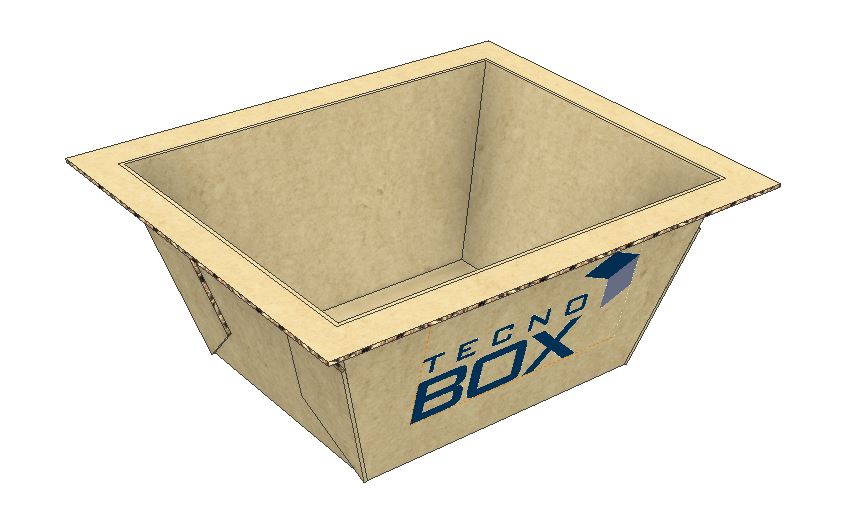

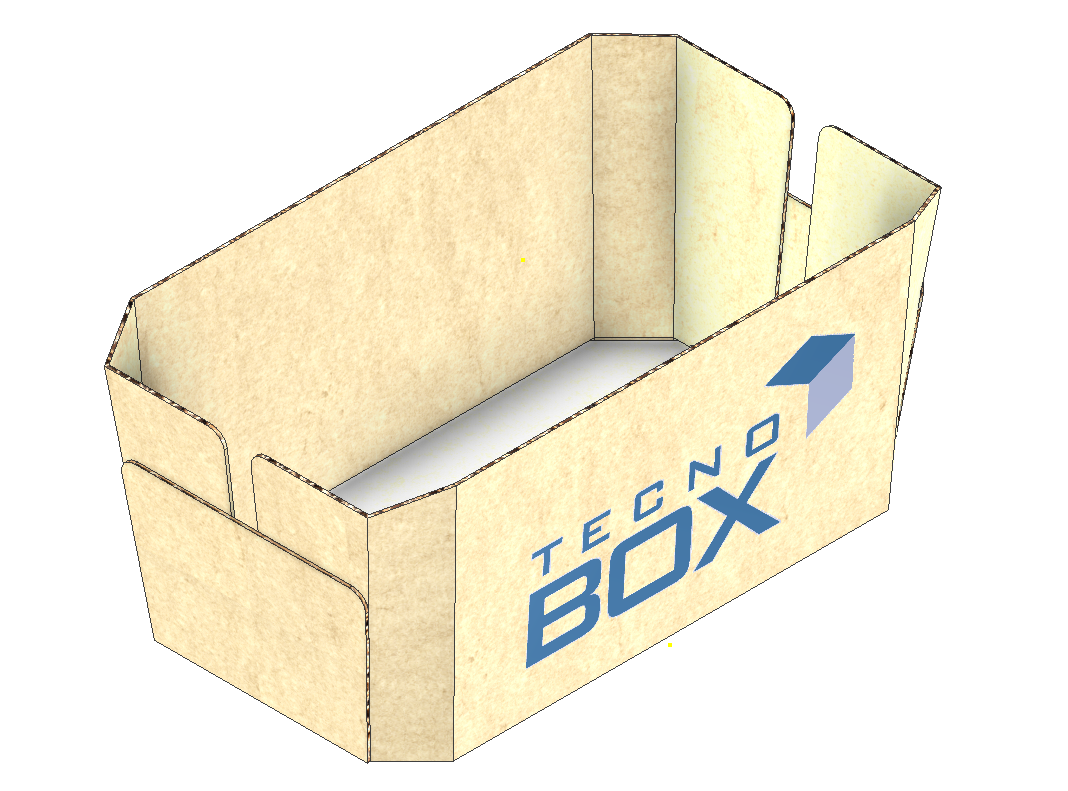

Standard box and plate dimensions
Get to know the different models and configurations, to adapt to your needs.
| TBQ Max(mm) | TBQ Min(mm) | |
|---|---|---|
| D | 500 | 85 |
| E | 600 | 150 |
| TBQ Max(mm) | TBQ Min(mm) | |
|---|---|---|
| A | 150 | 25 |
| B | 500 | 70 |
| C | 450 | 70 |
Configure it for Topseal formats
Adapt the TBQ-Pack machine, for the assembly of containers intended for closure by heat sealing.
QUEUING SYSTEM
Installation of electric guns for precise injection of gluing points.
ACTIVE MOLD
We custom design the training system required by your box, to ensure its correct assembly.
Male pneumatic former
We use pneumatics to provide mobility to the male achieving the perfect form.
Specific output systems
We adapt the output systems to your production requirements.
Technical Data Sheets
| TBQ-PACK | |
|---|---|
| Working dimensions (L x W x H) | 3500 x 2065 x 2460 |
| Transport dimensions (L x W x H) | 3500 x 2065 x 2460 |
| Weight | 1500 Kg |
| Electricity Consumption | 400V(3PH+N+PE)50HZ |
| Speed (cycles/hour) | 2400 |
| Connectable to the line | Yes |
| PLC and automaton | OMRON |
