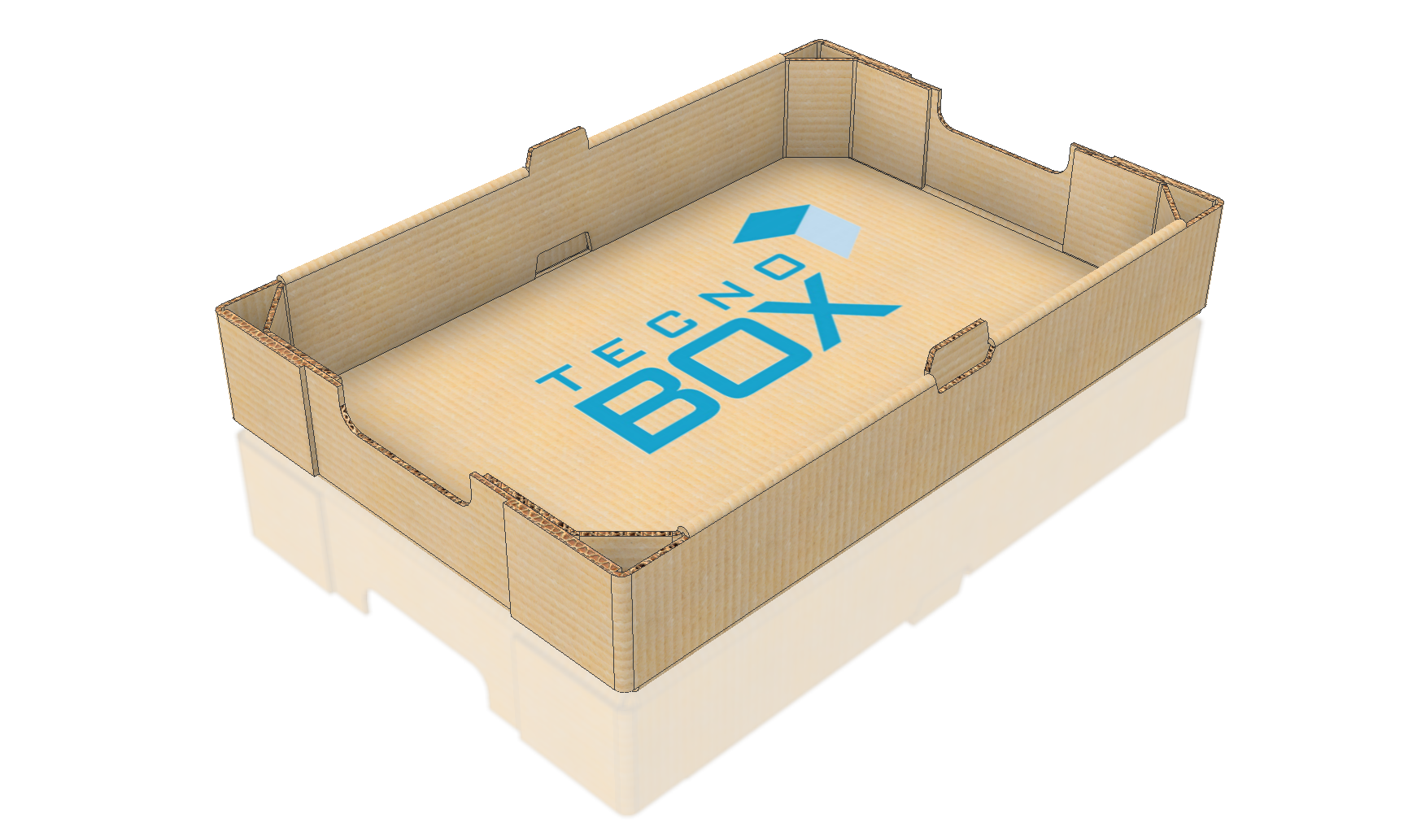

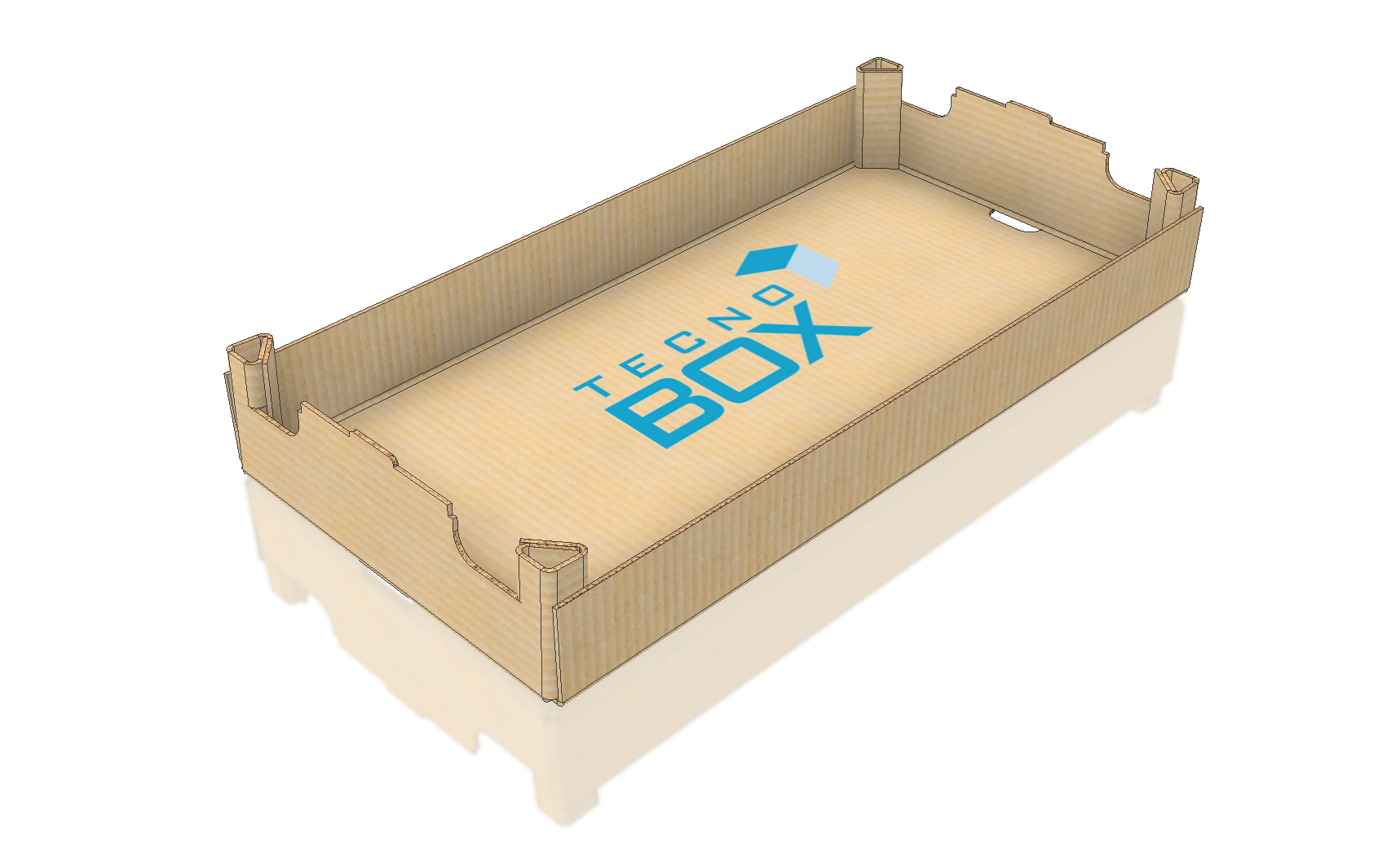

Our latest range of mounting machines, recommended for Plaform, Open Column, P84, C-1 and special formats.
The expected evolution of our TGOX range through the application of the last technologies and a renovated appearance that increases visibility and increases safety without losing any of the performance of reliability, robustness, versatility, performance and low maintenance

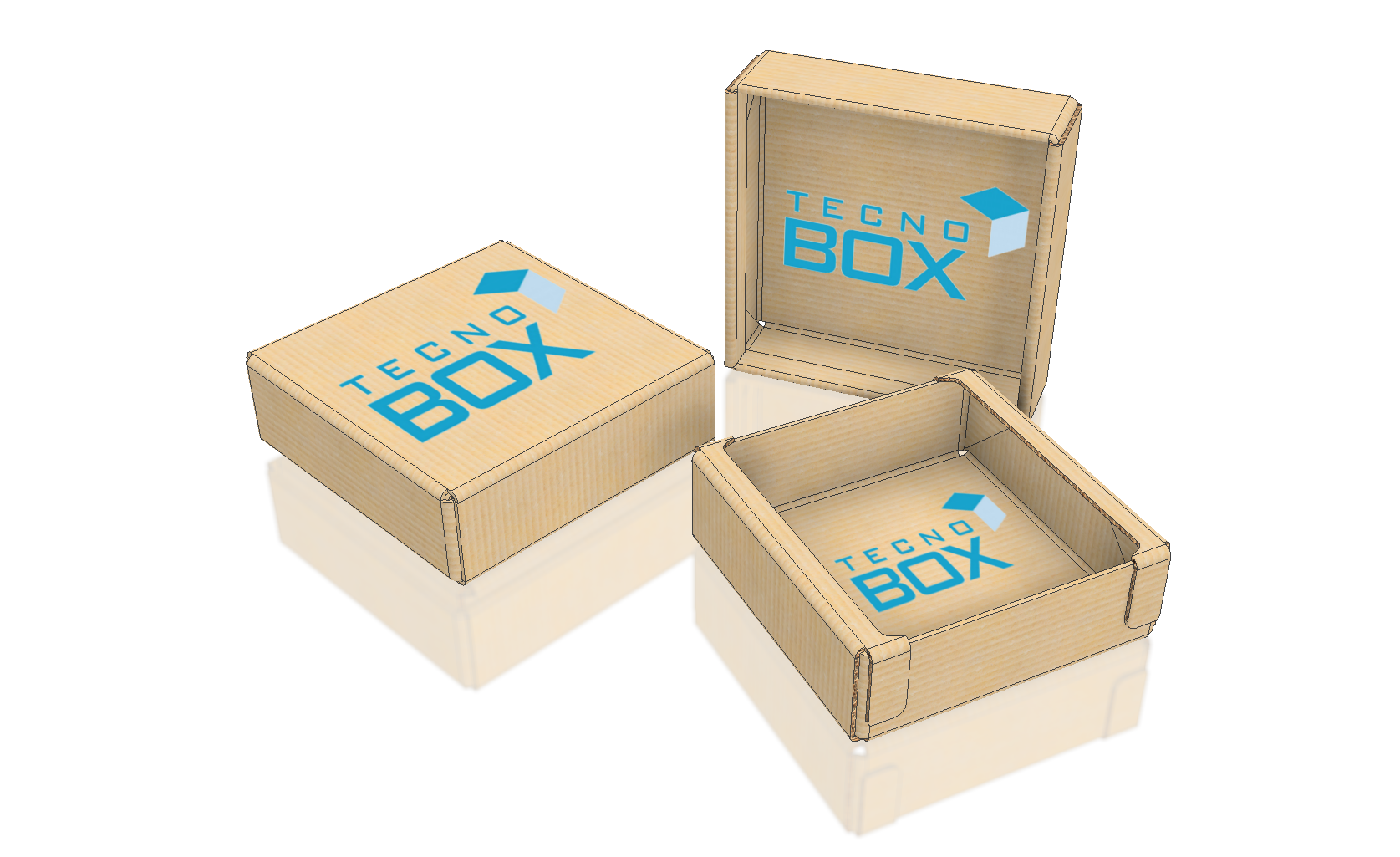

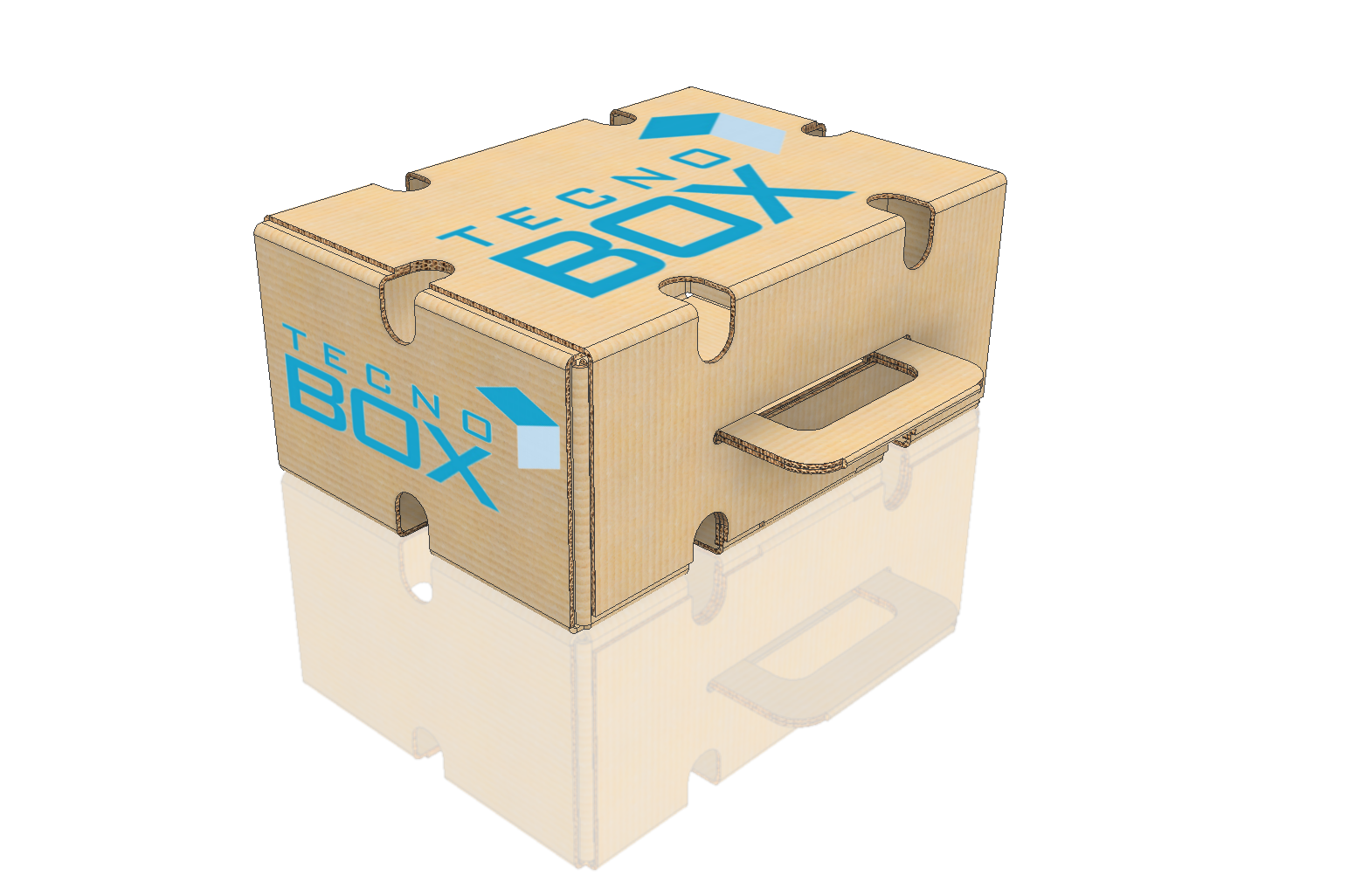

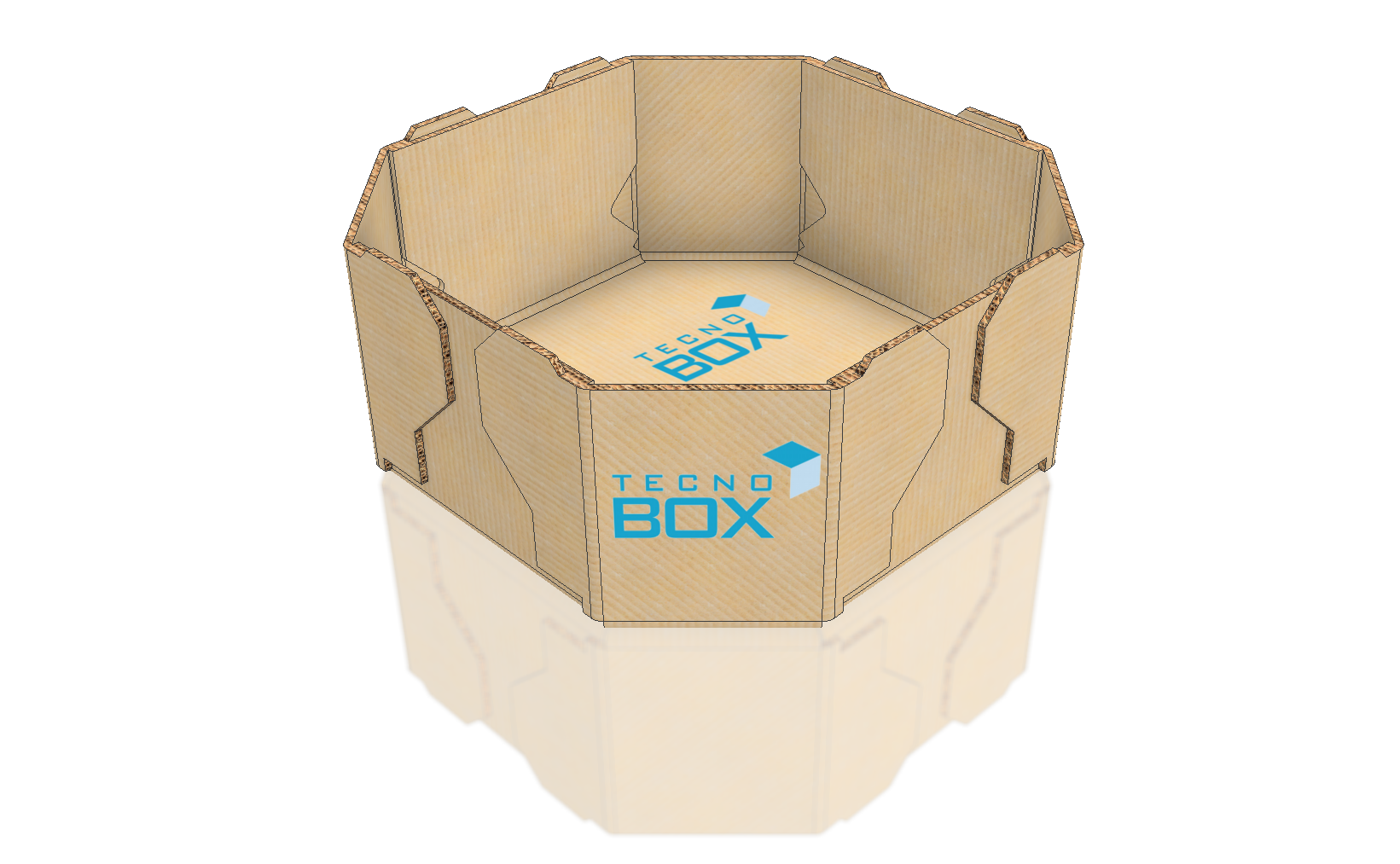

Multi-format
Capable of assembling most formats on the market.
high speed
A production of up to 2400 cycles/hour.
"0" Maintenance
All systems are optimized to minimize maintenance to the maximum.
Variable speed drive
Complete control of the plate assembly process.
Programmable shutdown
Tail tank with programmable shutdown system, reducing energy consumption.
Operativeness
Lighting on the mold, improving visibility when making adjustments to the machine.
Ergonomic
We take care of the details and your workers.
Remote control
Better and convenient management and analysis of productive data.
Easy Mobility
It includes wheels, rings and everything you need for easy handling between production centers.
Robustness
Manufactured on 4mm folded sheet metal chassis increasing its useful life.
Consumables under ISO standards
We only work with standard wear elements, easy to locate in the market.
Box and iron dimensions
Get to know the different models and configurations, to adapt to your needs.
| TB-PACK-1 Max(mm) | TB-PACK-2 Max(mm) | |
|---|---|---|
| A | 1380 | 1380 |
| B | 950 | 1080 |
| TB-PACK-1 Min(mm) | TB-PACK-1 Max(mm) | TB-PACK-2 Min(mm) | TB-PACK-2 Max(mm) | |
|---|---|---|---|---|
| A | 280 | 800 | 280 | 800 |
| B | 180 | 400 | 180 | 600 |
| C | 60 | 280 | 60 | 280 |
| TB-PACK-3 Max(mm) | TB-PACK-4 Max(mm) | |
|---|---|---|
| A | 1580 | 1380 |
| B | 950 | 1080 |
| TB-PACK-3 Min(mm) | TB-PACK-3 Max(mm) | TB-PACK-4 Min(mm) | TB-PACK-4 Max(mm) | |
|---|---|---|---|---|
| A | 280 | 1.000 | 280 | 1.000 |
| B | 180 | 400 | 180 | 600 |
| C | 60 | 280 | 60 | 280 |
Technical Data Sheets
| TB-PACK-1 | TB-PACK-2 | TB-PACK-3 | TB-PACK-4 | |
|---|---|---|---|---|
| Working dimensions (L x W x H) | 3500 x 2065 x 2460 | 3700 x 2065 x 2460 | 3500 x 2265 x 2460 | 3700 x 2265 x 2460 |
| Transport dimensions (L x W x H) | 3100 x 1750 x 2460 | 3300 x 1750 x 2460 | 3100 x 1950 x 2460 | 3300 x 1950 x 2460 |
| Weight | 1500 Kg | 1650 Kg | 1650 Kg | 1850 Kg |
| Electrical connection | 400V(3PH+N+PE)50HZ | 400V(3PH+N+PE)50HZ | 400V(3PH+N+PE)50HZ | 400V(3PH+N+PE)50HZ |
| Speed (cycles/hour) | 2400 | 2400 | 2400 | 2400 |
| Connectable to the line | Yes | Yes | Yes | Yes |
| PLC and automaton | OMRON | OMRON | OMRON | OMRON |
| Adhesive capacity | 10kg / 20kg | 10kg / 20kg | 10kg / 20kg | 10kg / 20kg |
| Vacuum system | Empty pump / Venturi | Empty pump / Venturi | Empty pump / Venturi | Empty pump / Venturi |
| Compressor (optional) | Internal / External | Internal / External | Internal / External | Internal / External |
| TB-PACK-1 | TB-PACK-2 | |
|---|---|---|
| Working dimensions (L x W x H) | 3500 x 2065 x 2460 | 3700 x 2065 x 2460 |
| Transport dimensions (L x W x H) | 3500 x 2065 x 2460 | 3700 x 2065 x 2460 |
| Weight | 1500 Kg | 1650 Kg |
| Electricity Consumption | 400V(3PH+N+PE)50HZ | 400V(3PH+N+PE)50HZ |
| Speed (cycles/hour) | 2400 | 2400 |
| Connectable to the line | Sí | Sí |
| PLC and automaton | OMRON | OMRON |
| TB-PACK-3 | TB-PACK-4 | |
|---|---|---|
| Working dimensions (L x W x H) | 3500 x 2065 x 2460 | 3700 x 2065 x 2460 |
| Transport dimensions (L x W x H) | 3500 x 2065 x 2460 | 3700 x 2065 x 2460 |
| Weight | 1500 Kg | 1650 Kg |
| Electricity consumption | 400V(3PH+N+PE)50HZ | 400V(3PH+N+PE)50HZ |
| Spped (cyclles/hour) | 2400 | 2400 |
| Connectable to the line | Sí | Sí |
| PLC and automaton | OMRON | OMRON |
