Assembling pallot containers has never been so fast, easy and safe.
CAST has been designed thanks to an international collaboration, being the result of combining the know-how of Solema and Tecnobox, companies with a great experience and tendency to innovation. The first compact and transportable machine capable of assembling pallet and half-pallet size containers with various heights for the transport of large quantities of bulk.
Multi-format
Capable of assembling most formats on the market.
INCREASE PRODUCTION
A production of up to 3 cycles/min..
"0" Maintenance
All systems are optimized to minimize maintenance to the maximum.
Innovative
Totally revolutionary in the sector.
Programmable shutdown
Tail tank with programmable shutdown system, reducing energy consumption.
INTEGRABLE
Connectable to subsequent packaging lines.
REDUCTION OF PRODUCTION COSTS
Reduce assembly time by up to 75% compared to traditional packaging.
Ergonomic
We take care of the details and your workers.
Remote control
Better and convenient management and analysis of productive data.
COMPACT AND TRANSPORTABLE
Ready for transport between production centers.
MAXIMIZES PACKAGING STRENGTH
The application of adhesive guarantees strength and durability.
Consumables under ISO standards
We only work with standard wear elements, easy to locate in the market.

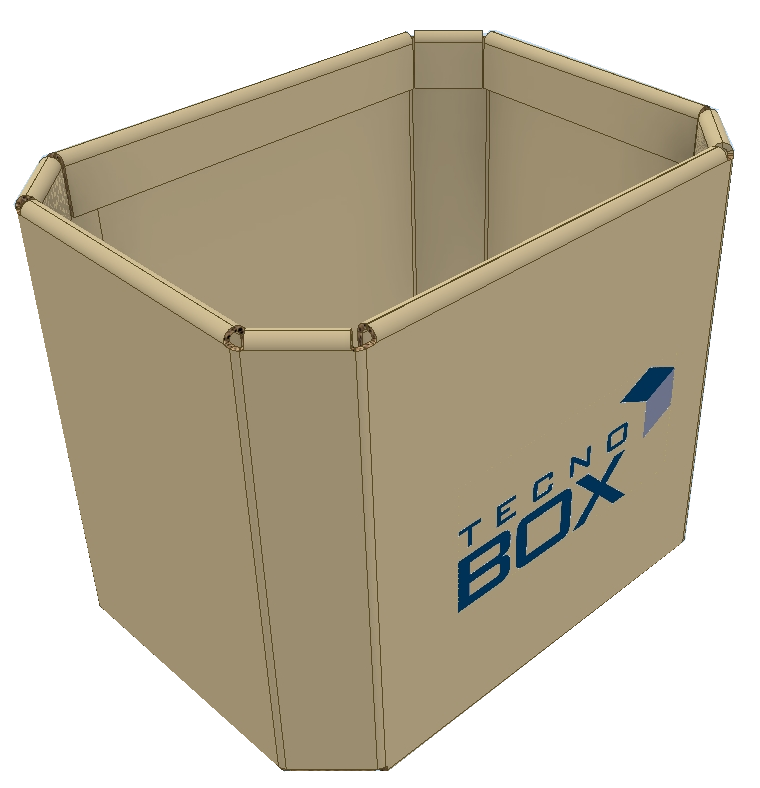

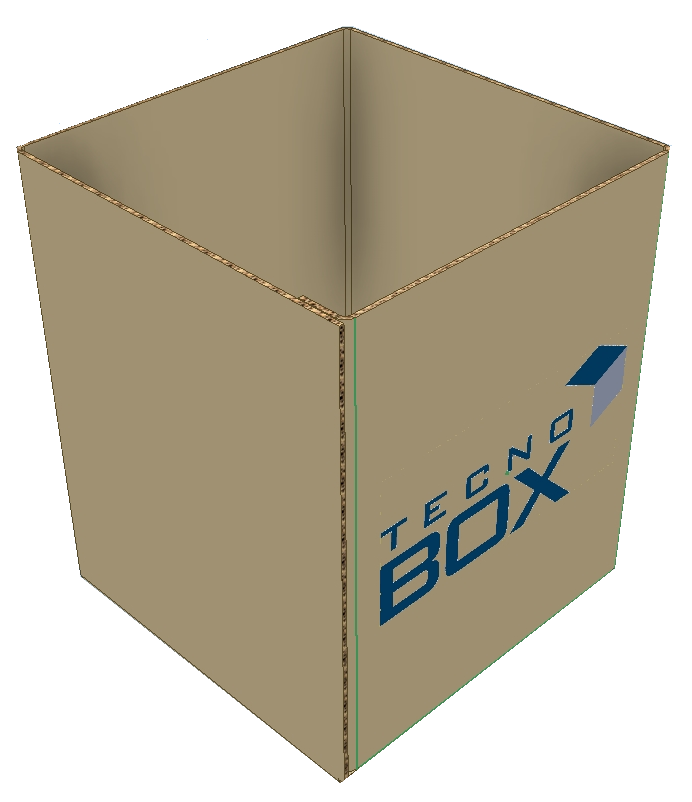

Box and iron dimensions
Get to know the different models and configurations, to adapt to your needs.
| CAST | Min(mm) | Max(mm) |
|---|---|---|
| A | 800 | 1.200 |
| B | 600 | 1.200 |
| C | 450 | 900 |
Technical Data Sheets
| Data for box configuration 800x600x655 (L x W x H) | CAST |
|---|---|
| Working dimensions (L x W x H) | 3408 x 2830 x 2700 |
| Transport dimensions (L x W x H) | 1850 x 1500 x 2700 |
| Weight | 2400 Kg |
| Electrical connection | 3 x 400V + |
| Speed (cycles/hour) | 3 |
| Connectable to the line | Yes |
| PLC and automaton | OMRON / SIEMENS |
| Adhesive capacity | 20 kg |
| vacuum system | Venturi |
| Compressor (optional) | External |
